Bottle Shrink Sleeve Label Machine Malaysia

Bottle Shrink Sleeve Label Machine Malaysia

Bottle Shrink Sleeve Label Machine Malaysia
Brand : Meta

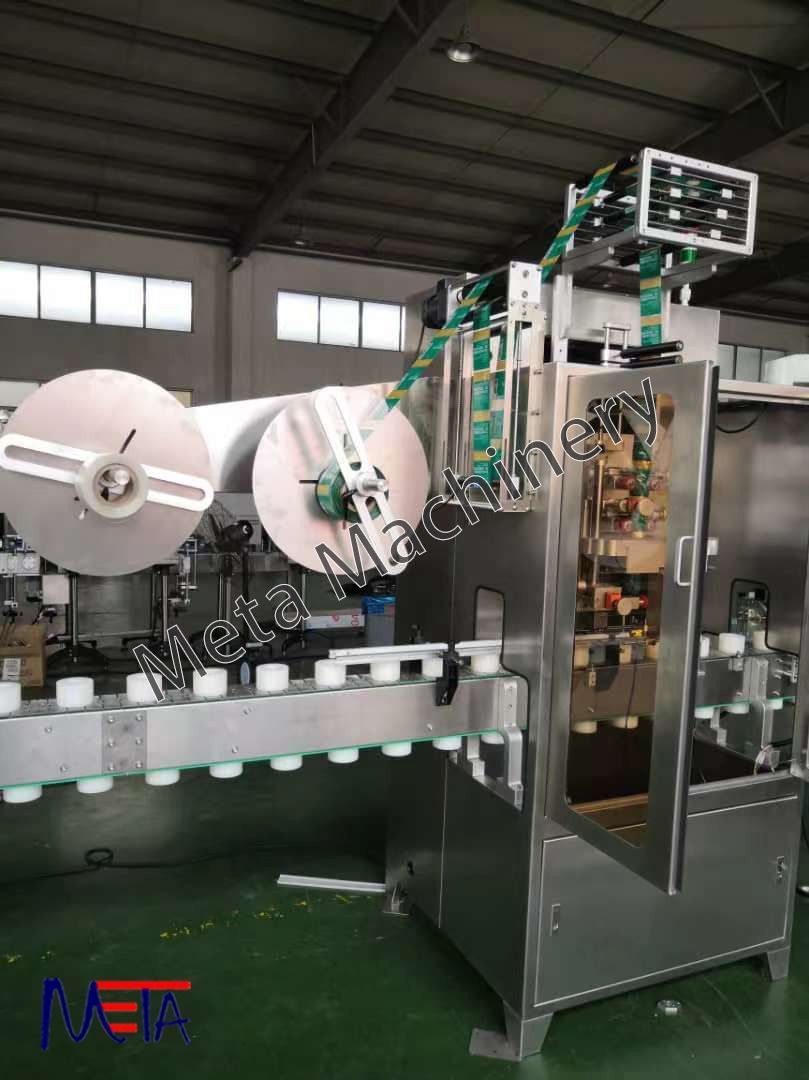

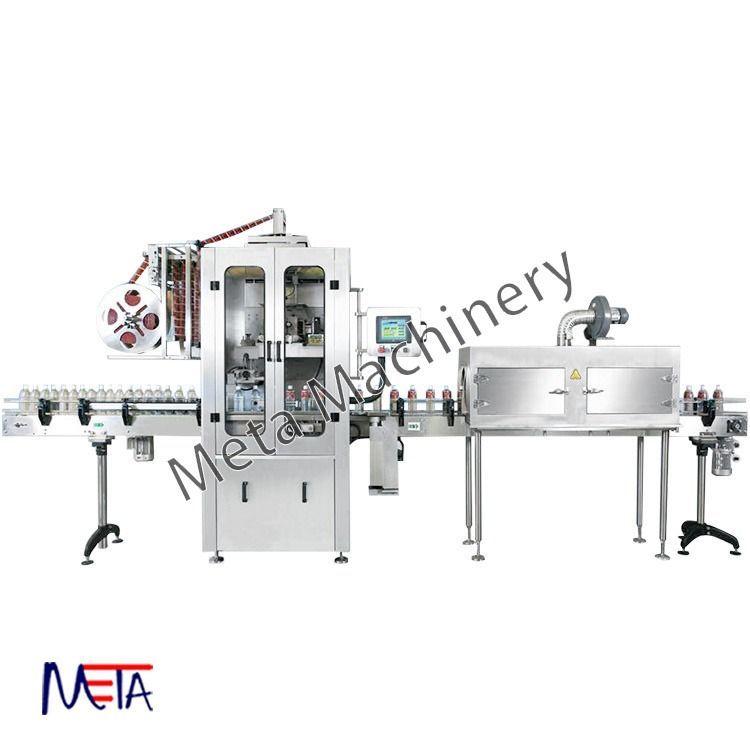

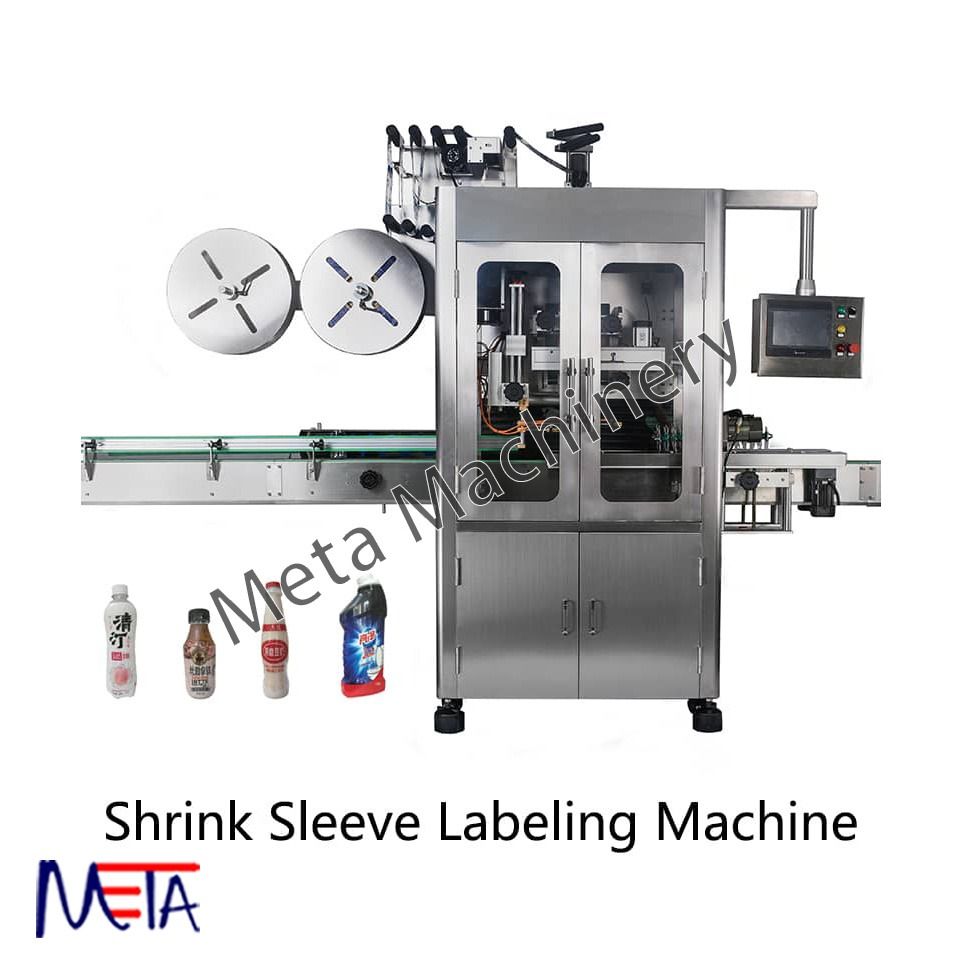

Bottle Shrink Sleeve Label Machine Malaysia
This machine adopts international advanced technology; cover the circle label on the PET bottle. And then hot shrinking to fix on the position which bottle body designated.This machine's structure is compact, and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.

Capacity
on the base label length :500ml
3000BPH-6000BPH
6000BPH-10000BPH
Label size
Diameter 50-110mm
Diameter 30-125mm
Bottle heights
heights 50-200mm
Bottle diameter
Diameter 40-120mm
Diameter 28-125mm
Label sleeve length
40-150mm
30-250mm
Thickness
> 0.035mm
> 0.035mm
Label material
PVC/ PET
PVC/ PET
Electrical power
2.5KW (380V 50HZ)
Overall diameter
2440*890*2200mm
Weight
Approximate 750KG
Approximate 950KG
